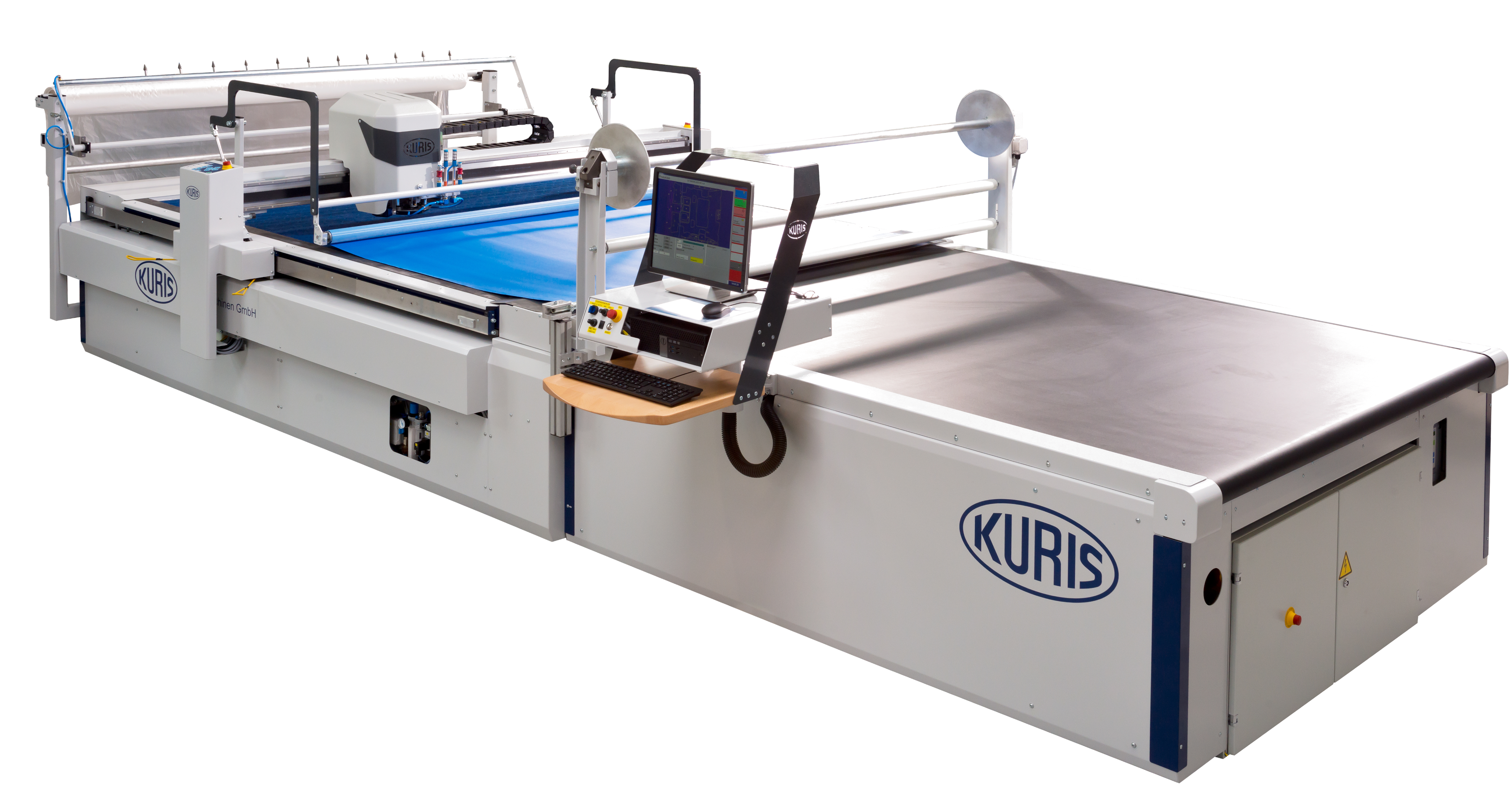

HIGH PLY CUTTERS

TexCut 25,30,45,60,70,80

Innovative high-tech quality

Innovative high-tech quality products for cutting of technical textiles and special materials such as foils and veneers, aramid, carbon and glass fibers, prepregs and insulation material, sports and leisure products. The same applies for the sample and mass production concerning the garment, furniture and automotive industry - and in many other industrial facilities.

The demands of a rising global market lead in many areas of the manufacturing industry to the innovation of existing processes . In many cases, this means shifting tasks on machines that were previously done by hand. This requires a machine technology which is powerful enough to increase productivity already achieved, but which is at the same time simple enough even for beginners to pave the way for the automatic operation. Kuris has implemented this requirement using Tex Cut 25 to 80 machines.

Untertext:

RANGE OF APPLICATION:

GARMENT INDUSTRY, AUTOMOTIVE INDUSTRY, AVIATION AND AEROSPACE INDUSTRY, FURNITURE INDUSTRY, CONSTRUCTION, BOAT INDUSTRY, RAILWAY INDUSTRY

Highlights / Vorteile:

BENEFITS
AT A GL ANCE:

  • BRISTLE BELT WITH CUTTING WINDOW 2.2M, 3.5M or 4.5M OFFERS OPTIMUM ADJUSTMENT TO THE SIZE OF THE PARTS AND CUTFILES
  • EXCELLENT CUTTING QUALITY ALSO WHEN CUTTING, DIFFICULT CONTOURS AND HARD MATERIALS DUE TO AUTOMATIC COMPENSATION OF KNIFE BENDING (OPTION: SMART KNIFE)
  • HIGH CUTTING SPEED GUARANTEES A HIGHLY EFFECTIVE OUTPUT EVEN FOR SINGL EPLIES
  • REDUCED ENERGY CONSUMPTION THROUGH ECONOMIC VACUUM UNIT, VACUUM OUTPUT IS OPTIMALLY CONTROLL ABLE (OPTION)
  • VERY EASY TO BE HANDLED BY FULLY DEVELOPED OPERATOR GUIDANCE
  • EASY TO MAINTAIN THROUGH STANDARDISED COMPONENTS, LOWMAINTENANCE
  • FAST AND COMFORTABLE CHANGE OF KNIFE AND CUTTING HEAD, DUE TO PATENT-REGISTERED SERVICE-POSITION
  • AUTOMATIC PARALLELISM MONITORING– NO SUBSEQUENT MANUAL ALIGNMENT OF THE LAYER PACKAGE
  • AUTOMATIC SANITY CHECK PREVENTS FAULTY CUTS IF AN OPERATING ERROR OCCURS
  • RESEALER FOR A BETTER VACUUM
Technische Daten:

Technical Data:

Cutting heights:   Up to 80 mm compressed
Maximum cutting speed:   45 m/min
Positioning speed:   60 m/min
Working widths:   1,90 / 2,20 / 2,40 m (other ones on request)
Overall width of the cutter frame:   2,25 / 2,55 / 2,75 m
Total length of the cutter frame:   3,20 / 4,50 / 5,50 m
Effective cutting length:   2,20 / 3,50 / 4,50 m
Length of clearing area:   2,00 / 2,50 / 3,30 / 4,30 m
Total width of the clearing belt:   2,10 / 2,40 / 2,60 m
Total length of the cutter system:   5,20 / 5,70 / 7,80 / 9,80 m
Weight of the cutter system:   approx. 3600 - 3900 kg
Weight of the vacuum system:   approx. 600 - 800 kg

Electrical power connection:

Operating voltage:   230 / 400 V, 50 / 60 Hz, 3-Phasen
cutter including conveyer belt:   4 kW
Economic vacuum system:   22 / 30 kW
Compressed air (5-6 bar):   10 l/min
(for drilling facility):   230 l/min (temporarily)



Options:

  • System in movable execution with
  • respect to the take-over of layer
  • packages from several tables
  • Pattern repeat and stripe processing
  • Electronic knife break control
  • Drawing device
  • Facility for hollow drilling up to 20 mm in diameter
  • Resealer for a better vacuum

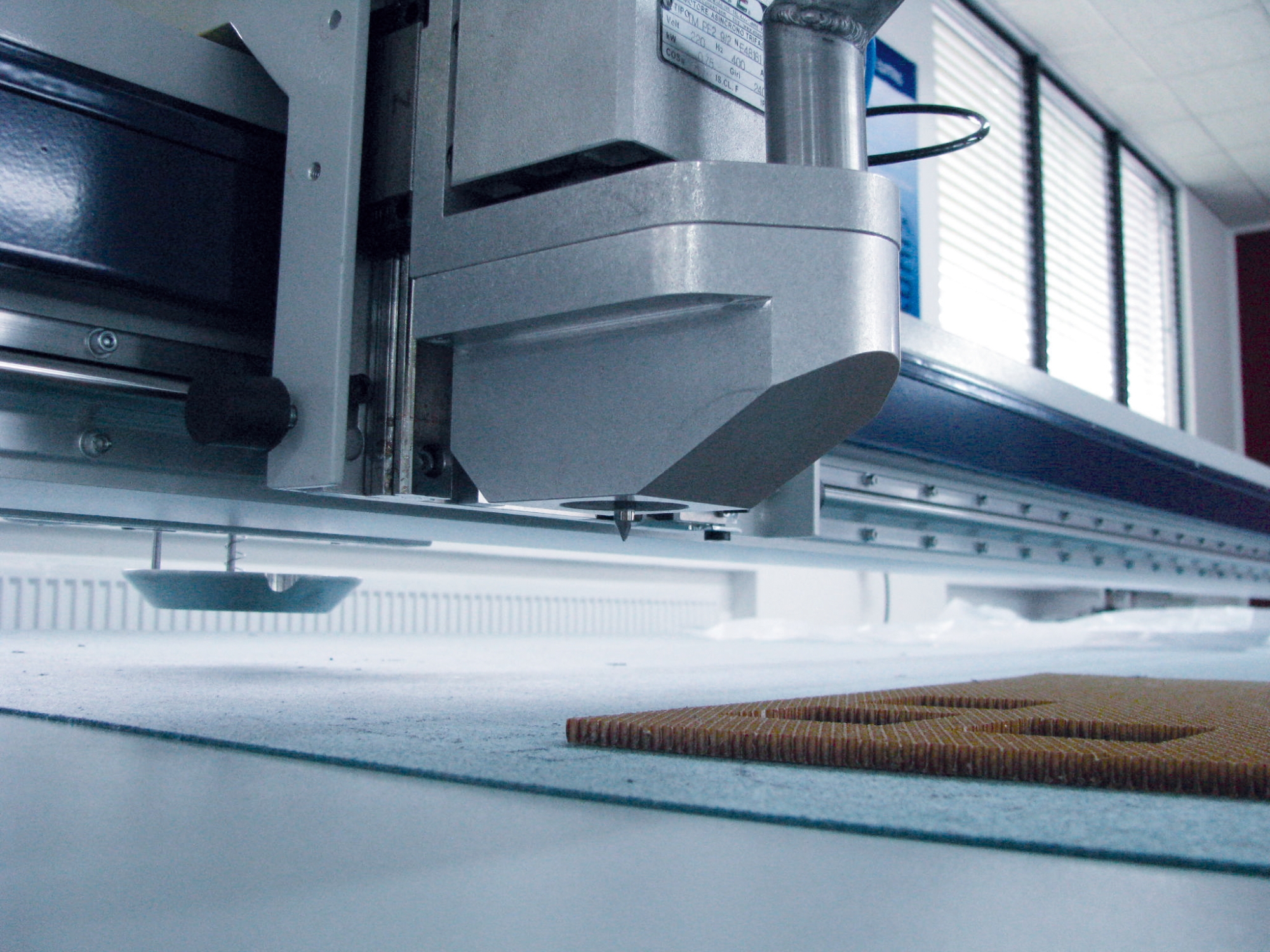

  • Milling unit
  • »Smart Knife«


Knife sizes:

  • 1,2 x 6,0 mm
  • 2,0 x 6,0 mm
  • 2,0 x 7,0 mm
  • 2,5 x 8,0 mm
  • 3,0 x 9,0 mm

Our knives are available with different coatings. The blades are available with either serrated or saw tooth grinding and consist of HSS or carbide.

Acoustic level: 57 - 74 dB(A)
Mark of conformity: CE

Downloads:

TexCut 25,30,45,60,70,80

Downloads

You can find further information and technical details
in our brochures.



TEXCUT 25,30,45,60,70,80

Zusatz:

Kuris, the specialist in innovative spreading and cutting technology. Our product range offers solutions for various individual requirements. Our showrrom offers the possibility for demonstrations and cutting tests with your individual materials.

For further information about our products, please send us your enquiry.
We would be pleased to give you an individual consultation.
