Beschreibung:

single ply

SINGLE PLY CUTTER 3001S-3001C

The desire for individual products on the market is growing - the production order sizes are getting smaller and smaller. This means that a production process is required that is flexible enough on the one hand, reflects the desire for the corresponding variety, and on the other hand does not impair profitability.

Here comes our single-ply cutter, which is available both as a static machine, for example for prototyping and small series, as well as with a conveyor belt, ideal for production that has to react flexible in terms of production order sizes.

Cutting directly from the roll minimizes time-consuming pre-setting and saves time. The feed via a wear-resistant conveyor belt automatically transports the material into the cutting zone, after cutting the material can be conveniently sorted from a predefined clearing zone.

The intuitive user interface of the system impresses with its clarity and is easy to learn and should it not be fast enough, we offer a second cutting bridge that saves up to 50% cutting time, depending on the patttern to cut.

The 3001 C single ply cutter series in particular can be produced in widths of up to 4.10 m and lengths of up to 7.40 m. In contrast to the "Cutty" series, these systems are made to measure and thus meet individual, exclusive customer requirements.

Untertext:

The system was developed specifically for use of cutting textile fabrics, knitwear, technical textiles and special materials. The variety of parts offers fast and flexible options.

Highlights / Vorteile:

Highlights -
at a glance



  • Speed
  • Precision
  • Fast tool change
  • Short set-up times
  • Mobile operator terminal
  • Outstanding cutting quality
  • Smooth operation
  • Long lifespan
  • Easy to service
  • Easy to operate

Noise level: 57 - 74 dB(A)
Certification mark: CE

Technische Daten:

TECHNICAL DATA:

Max. cutting height:   40 mm (depending on tool)
Max. cutting speed:   70 m/min
Max. positioning speed:   100 m/min
Max. acceleration:   7 m/s²
Nominal working widths static (Y):
1,55 m / 1,85 m / 2,15 m / 2,45 m / 3,05 m / 3,65 m / 4,10 m / 5,10 m (more on request)
Nominal working lengths static (X):   basic modul 3,30 m / extension module each 2,40 m
Nominal working widths conveyor (Y):   1,75 m / 2,15 m / 2,40 m / 2,75 m / 3,25 m / 4,10 m / 5,10 m (more on request)
Nominal working lengths conveyor (X):   2,20 m / 3,50 m / 4,50 m
Working height:   from 0,85 m
Operating voltage:   400 V, 50/60 Hz


Connected electrical load

Control / drives:   4 kW
Vacuum unit:   7,5 kW / 11 kW / 18 kW
Average consumption:   8 kW
Fuse:   35 A (5x6mm²)
Protection class:   Klasse 1
Compressed air (5-6 bar):   10 l/min
Zusatz:

The comprehensive product range also enables solutions for your needs. In our demonstration center, laying and cutting machines are available for general demonstrations as well as for test cuts with your own materials.

Make an appointment with us.
We are happy to help!

Header Bild:
Highlights Bild:
Slide_1:

3001S-3001C

For the fine cutting of textile fabrics, knitwear, technical textiles and special materials.

  • Flexible
  • Durable
  • Service-friendly
Beschreibung:

Single ply cutters

CUTTY

The “Cutty” single-ply cutter series from Kuris is the fourth generation of the proven cutters which has been completely overhauled and optimised. It is noted for the individually optimised cutting head with a programmable Z-axis. The machines are all designed for maximum productivity and optimum production quality. The tool technology can be adapted individually and precisely to the respective material. This means that optimum cutting conditions are always achieved. The fourth generation is equipped with Multiflex tool adaptation. As well as offering extremely short plunge times, this system also offers a persuasive choice thanks to the fast positioning and cutting speeds. In addition, the tool-change system reduces the set-up times considerably because fewer adjustment operations are required. The cutter achieves positioning speeds of up to 100 metres per minute and, depending on the type of material, the cutting speed is up to 70 metres per minute. The machine is optionally available with a 7.5 or 11 KW vacuum pump. The standard user interface and menu navigation ensures that the machine operator can quickly get to grips with the machine across a range of technologies. Operating errors and the cost of training are drastically reduced. Even at high speeds, the machine cuts consistently and reliably. The mobile and innovative control system is very user-friendly.

Untertext:

COMPACT, FAST AND RELIABLE!

For the cutting of textile materials, technical textiles, films, leather, plastics, prepreg, glass fibre, carbon fibre, honeycomb material and special materials. Fast and flexible options are provided for a variety of parts.

Highlights / Vorteile:

Highlights -
at a glance

Options: - ouble bridge: Two bridges for independent cutting with two cutting heads in one cut pattern. Cutting time saving: up to 40%

  • Speed
  • Precision
  • Fast tool change
  • Short set-up times
  • Mobile operator terminal
  • Outstanding cutting quality
  • Smooth operation
  • Long lifespan
  • Easy to service
  • Easy to operate

Noise level: 57 - 74 dB(A)
Certification mark: CE

Technische Daten:

TECHNICAL DATA:

Max. cutting height:   40 mm (depending on tool)
Max. cutting speed:   70 m/min
Max. positioning speed:   100 m/min
Max. acceleration:   7 m/s²
Nominal working widths (Y):   1,75 m / 2,15 m / 2,75 m
Table widths:   2,30 m / 2,70 m / 3,30 m
Nominal working lengths (X):   2,30 m / 3,50 m
Total lengths:   3,80 m / 5,00 m
Weight of the cutter:   1950 kg / 2300 kg / 3800 kg
Working height:   ab 0,85 m
Operating voltage:   400 V, 50/60 Hz

Connected electrical load

Control / drives:   4 kW
Vacuum unit:   7,5 kW / 11 kW / 18 kW
Average consumption:   8 kW
Fuse:   35 A (5x6mm²)
Protection class:   Class 1
Compressed air (5-6 bar):   10 l/min
Downloads:

CUTTY

Downloads

You can find further information and technical details
in our brochures.

 Cutty



Zusatz:

The comprehensive product range also enables solutions for your needs. In our demonstration center, laying and cutting machines are available for general demonstrations as well as for test cuts with your own materials.

Make an appointment with us.
We are happy to help!

Header Bild:
Highlights Bild:
Slide_1:

Cutty

The compact one among the single-ply cutters. With its standard sizes, it can be used flexibly in all industries.

  • Speed
  • Short set-up times
  • Smooth operation
Beschreibung:

Single-ply

LEATHER - PROFESSIONAL SOLUTIONS FOR THE COMPLETE PRODUCTION PROCESS

LEATHER PROCESSING WITH KURIS

Compared with other industries and materials, leather cutting requires maximum attention and increased effort. This is why, in the leather industry in particular, the desire for a high degree of automation has always been present. We have set about doing this and have studied theentire production process in great depth. Our solutions have enabled us to really stand out in the leather market. Efficient and at a high level, topics such as smart order management, leather administration, leather scanning, powerful nesting and precise cutting are addressed.

Untertext:

SPLIT WORK PROCESS

Splitting the overall process into several individual processes enables a high level of optimisation and efficiency. The leather hides are digitised with the scanner and assessed in the leather storage facility. The production order is created automatically via an interface with the ERP system. Large potential savings are guaranteed through the combination of orders and the targeted preselection of the leather hides and ultimately also through multi-hide nesting.



Nesting & Cutting

1. PRODUCTION PLAN

Styles and patterns import and conversion, production quantity management, work distribution to one or several cutting stations

2. LEATHER SCANNING BY MEANS OF OPTICAL DEVICES

Automatic detection of the leather contour, determination of quality zones on five levels with the aid of video projection, bar-code label printing, leather purchase report

3. INTELLIGENT ORDER MANAGEMENT

Optimum matching of individual orders, article-based management

4. AUTOMATIC NESTING

Automatic and interactive nesting directly on the leather, automatic quality zone matching, wireless mouse and keyboard that are easy to use, multi-hide nesting



5. CUTTING

Automatic cutting and marking using a variety of tools: oscillating knife, round knife, punch with different diameters, drills, pens

6. COLLECTING

Interactive and swift part collecting procedure after cutting, using video projection, different collecting methods depending on the type of production

7. REPORTS

Comprehensive reports on leather stock, cutting efficiency, consumption, mini-markers, production quantity reports



IN-LINE SOLUTIONS

Optical devices such as cameras and projectors are used for acquisition and visualization. The OT1 Tool is a cutting tool perfectly matched to leather. The integrated cleaning brush guaranteed a reliable process for the optical devices. The service life of the cutting pad is also significantly extended.

1 ZONE (Compact solution)

Compact configuration offering all features of a large system: leather scanning, automatic nesting, collecting and reports. All these operations are performed directly on the cutter table, in a very fast and efficient process.



2 / 3 ZONEN (Series production)

To increase the productivity, the system is expanded to include two more zones: 1. Leather scanning and nesting, 2. Cutting, 3. Collecting – These three steps are performed directly on the machine: a conveyor belt moves the leather from one stage to the next, in a continuous and economic workflow.

Highlights / Vorteile:

OPTIONS

  • Drawing device
  • Drilling device
  • Milling device
  • Drag knife
  • Driven round knife
  • Oscillating knife
  • POT knifer
  • Printhead
Technische Daten:

TECHNICAL DATA (CUTTY 3527):

Max. cutting height:   40 mm (depending on tool)
Max. cutting speed:   70 m/min
Max. positioning speed:   100 m/min
Max. acceleration:   7 m/s²
Nominal working widths (Y):   1,75 m / 2,15 m / 2,75 m / 3,05 m
Table widths:   2,10 m / 2,50 m / 3,20 m / 3,50 m
Nominal working lengths (X):   2,30 m / 3,50 m
Total lengths:   3,80 m / 5,00 m
Weight of the cutter:   1950 kg / 2300 kg / 3800 kg
Working height:   from 0,85 m
Operating voltage:   400 V, 50/60 Hz

Connected electrical load

Control / drives:   4 kW
Vacuum unit:   7,5 kW / 11 kW
Average consumption:   8 kW
Fuse:   35 A (5x6mm²)
Protection class:   Class 1
Compressed air (5-6 bar):   10 l/min

Noise level: 57 - 74 dB(A)
Certification mark: CE

Downloads:

Leather

Downloads

You can find further information and technical details
in our brochures.



Leder



Zusatz:

The comprehensive product range also enables solutions for your needs. In our demonstration center, laying and cutting machines are available for general demonstrations as well as for test cuts with your own materials.

Make an appointment with us.
We are happy to help!

Header Bild:
Highlights Bild:
Slide_1:

Leather processing

Professional solutions for the complete production process

  • Model and pattern import
  • Automatic recognition
  •  Interactive nesting
Beschreibung:

Single ply

TC3001

COMPACT SCANNING SOLUTION
CAMERA SYSTEM FOR AUTOMATIC
RECORD - RECOGNIZE - CUT

Compact, fast and reliable! The single-layer cutters from Kuris are the fourth generation of the tried and tested cutting systems that have been completely revised and optimized. The cutting heads with programmable Z-axis are characteristic. The machines are all designed for maximum productivity and optimal manufacturing quality. The adaptive tool technology can be individually and precisely adapted to the respective material. This means that optimal cutting conditions are always achieved. The fourth generation is equipped with the Multiflex changing system. In addition to extremely short piercing times, this system also impresses with its high travel and cutting speed. With the tool change system, setup times are also significantly reduced, as considerably fewer setting processes are required.

visitexLOC from KURIS
powerd by digMAR

The visitexLOC image processing system was specially developed for use on textile and carpet cutting machines from KURIS and is used for the automatic determination of cutting coordinates. Depending on customer requirements, the materials to be cut are scanned in 2D or 3D using the latest camera technology. The cutting coordinates calculated from this are then passed on to the cutting system for further processing.

In addition to the possibility of enlarging or reducing the scanned shapes as required, it is also possible to round corners as required. Various calculation modules that can be adapted to customer requirements help the operator to determine the optimum cutting coordinates. The predefined standard calculation modules help the operator to determine the optimal cutting coordinates:

  • Freeform
  • Rectangle: Fixed predefined values for the size of the rectangle can also be defined.
  • Square (no 90 ° angle)
  • Circle: Fixed, predefined radii can also be defined. In addition to the standard calculation modules, special, individually available calculation modules are available:
  • Specific: This allows any number of customer-specific and freely definable modules for vector calculation to be created that can be applied to shapes found within a scan.nen.
  • Predefined: Use of shapes predefined in a file. The file types dxf, pcx, bmp, tif, png, jpg are supported
  • Tiles: Places a freely definable matrix of sub-shapes over the found shape. In addition to rectangles, these sub-shapes can also be circles or - if the module is enabled - predefined shapes.
  • Grid: Places a freely definable grid over the found shape. All calculation modes can be adapted to customer requirements, optimized and saved separately. With the statistics module, which is also available separately, production-relevant data such as cut lengths, areas and number of mats can be easily determined. For example, after the end of the shift, this information can be sent by e-mail (also as a csv file).

RECORD - RECOGNIZE - CUT

The textiles / carpets are recorded with the integrated camera system. The cameras allow a quick recording and immediate playback of the scanned image

Image. The intuitive "visitexLOC" user interface enables the system to be handled in the shortest possible time. Easy communication between software and cutter.

The software processes and filters the recorded images so that the grid is generated directly for cutting. The cutting files are transferred from the scan software (visitexLOC) directly to the HMI, without additional commands from the operator. No CAD files are necessary.

Developed for the toughest conditions. Cutting head with a high number of strokes (14,000) and 2-edged special knife with 15mm cutting height. The modular cutter can also be equipped for the following applications: Milling Hollow drill Drawing / marking Oscillating knife Driven circular knife.

The machine achieves travel speeds of up to 100 meters per minute, the cutting speed is up to 70 meters per minute, depending on the material. The system is optionally available with a 7.5 or 11 kW vacuum pump. Thanks to the uniform user interface and menu navigation, the machine operator can quickly find his way across technologies. Operating errors and training costs are drastically reduced. Even at high speeds, the system cuts consistently and reliably. The mobile and innovative control is very user-friendly.

Highlights / Vorteile:

OPTIONS

  • Base head
  • Carpet head
  • Drawing facility

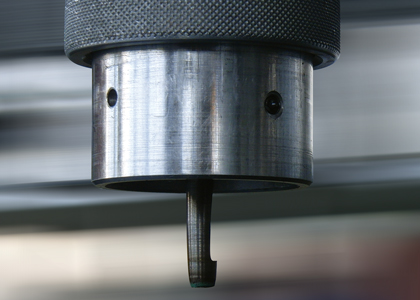

  • Drilling device
  • Milling device
  • Draw knife
  • driven circular knife
  • oscillating knife 1 stroke, 2 stroke, 5 stroke
  • Zone vacuum
  • Printhead

ADVANTAGES

  • Speed
  • Accuracy
  • quick tool change
  • short set-up times
  • mobile control terminal
  • excellent cutting quality
  • pleasant running smoothness
  • long life span
  • service friendly
  • easy to use
Technische Daten:

TECHNICAL DATA:

Max. cutting height:   40 mm (depending on tool)
Max. cutting speed:   70 m/min
Max. positioning speed:   100 m/min
Max. acceleration:   7 m/s²
Nominal working widths (Y):   1,75 m / 2,15 m / 2,75 m / 3,25 m / 4,05 m
Table widths:   2,10 m / 2,50 m / 3,10 m / 3,60 m / 4,60 m
Nominal working lengths (X):   2,30 m / 3,50 m / 4,50 m
Total lengths:   3,80 m / 5,00 m / 6,20 m
Weight of the cutter:   1950 kg / 2300 kg / 3800 kg
Working height:   ab 0,85 m
Operating voltage:   400 V, 50/60 Hz

Connected electrical load

Control / drives:   4 kW
Vacuum unit:   7,5 kW / 11 kW
Average consumption:   8 kW
Fuse:   35 A (5x6mm²)
Protection class:   Class 1
Compressed air (5-6 bar):   10 l/min

Noise level: 57 - 74 dB(A)
Certification mark: CE

Downloads:

TC3001

Downloads

You can find further information and technical details
in our brochures.

 TC3001



Zusatz:

The comprehensive product range also enables solutions for your needs. In our demonstration center, laying and cutting machines are available for general demonstrations as well as for test cuts with your own materials.

Make an appointment with us.
We are happy to help!

Header Bild:
Highlights Bild:
Slide_2:

TC3001

Camera-System for automatic Record - Recognize - Cut

  • Speed
  • Precision
  • Automation
